Facts & Figures
Cat.No.: 1406
24,900
Max. RCF
16,000 min-1
Max. RPM
407 x 698 x 346 mm
Dimensions (WxDxH)
4 x 200 ml or 6 x 94 ml
Max. capacity
-20 up to +40 °C
Temperature Control
approx. 52 kg
Weight
The UNIVERSAL 320 R is a compact, versatile and indispensable general purpose centrifuge. The R-model has a cooling system and temperatures between -20 °C and +40 °C can be set. Excellent performance and a comprehensive range of accessories enable the UNIVERSAL 320 R to carry out virtually any centrifuging tasks including plates, blood tubes, cell culture, microliter and cytology.
Best conditions for you samples
Eliminates the need to purchase an expensive dedicated cytocentrifuge
The UNIVERSAL 320 R performs multiple applications including cytology, in the same centrifuge, saving you money and bench space. Hettich’s 12-place Clip Rotor is capable of spinning up to to 6 ml single Cyto chambers and is with the bio-containment lid autoclavable.
Areas of applications
Clinical chemistry, Hematology, Serology, Cytology
Versatile and durable centrifuge for spinning blood tubes and urine tubes in swing-out rotors as well as in angle rotors.
Perform cytology with the unique bio-seal 12-place clip rotor or the flexible and economic two-step accessories.
Industry and Research
Up to 8 x 50 ml conical tubes for the passaging of cells in cell culture are possible. In addition, this relatively small bench top centrifuge spins microplates for solid phase assays.
This centrifuge provides special equipment for industrial applications like food analysis or investigation on paper.
Facilities
- Small labs
- Hospitals
- Veterinary labs
- Cell Culture labs
- Research labs in universities
- Pharmaceutical companies
- Food analyzing labs
- Physicians office lab (POL)
The right accessories for this centrifuge
Max. RCF: 3,328
Max. RPM: 4,500
Max. capacity: 4 x 200 ml
Angle: 90°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1554+1565+1572
Max. RCF: 4,193
Max. RPM: 5,000
Max. capacity: 4 x 100 ml
Angle: 90°
Cat.No.: 1494+1495+1492
Max. RCF: 2,665
Max. RPM: 4,000
Max. capacity: 4 x 100 ml
Angle: 90°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1624+1372
Max. RCF: 2,630
Max. RPM: 4,000
Max. capacity: 4 x 100 ml
Angle: 90°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1324+1490+1492
Max. RCF: 2,415
Max. RPM: 4,000
Max. capacity: 8 x 15 ml
Angle: 90°
Cat.No.: 1611
Max. RCF: 2,683
Max. RPM: 4,000
Max. capacity: 12 x 15 ml
Angle: 55° / 60° / 80 ° depends on the carrier
Cat.No.: 1628+1621
Max. RCF: 2,469
Max. RPM: 4,000
Max. capacity: 8 x 50 ml
Angle: 45°
Cat.No.: 1617
Max. RCF: 2,701
Max. RPM: 4,000
Max. capacity: 6 x 50 ml
Angle: 90°
Cat.No.: 1619
Max. RCF: 2,218
Max. RPM: 4,000
Max. capacity: 10 plates
Angle: 90°
Cat.No.: 1460
Max. RCF: 18,327
Max. RPM: 13,000
Max. capacity: 24 x 2 ml
Angle: 90°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1555
Max. RCF: 24,900
Max. RPM: 16,000
Max. capacity: 24 x 2 ml
Angle: 50°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1552
Max. RCF: 21,713
Max. RPM: 14,150
Max. capacity: 30 x 2 ml
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1553
Max. RCF: 13,604
Max. RPM: 13,000
Max. capacity: 8 PCR-Strips
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1551
Max. RCF: 22,161
Max. RPM: 14,150
Max. capacity: 18 x 5 ml
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1627
Max. RCF: 10,595
Max. RPM: 9,000
Max. capacity: 6 x 94 ml
Angle: 35°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1556
Max. RCF: 4,146
Max. RPM: 6,000
Max. capacity: 12 x 15 ml
Angle: 35°
Cat.No.: 1613
Max. RCF: 16,582
Max. RPM: 12,000
Max. capacity: 12 x 15 ml
Angle: 35°
Cat.No.: 1615
Max. RCF: 3,305
Max. RPM: 4,500
Max. capacity: 8 x 50 ml
Angle: 45°
Cat.No.: 1418
Packages
You get everything you need for your application in one package. Save time and stop searching for the right combination of accessories.
Show product packages
Downloads
- 1 MB
- EN

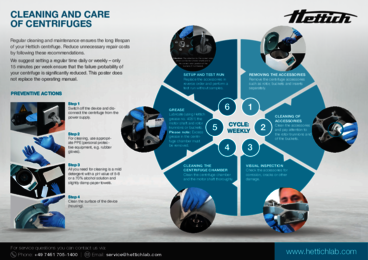

Cleaning & Care of Centrifuges
